OVERVIEW

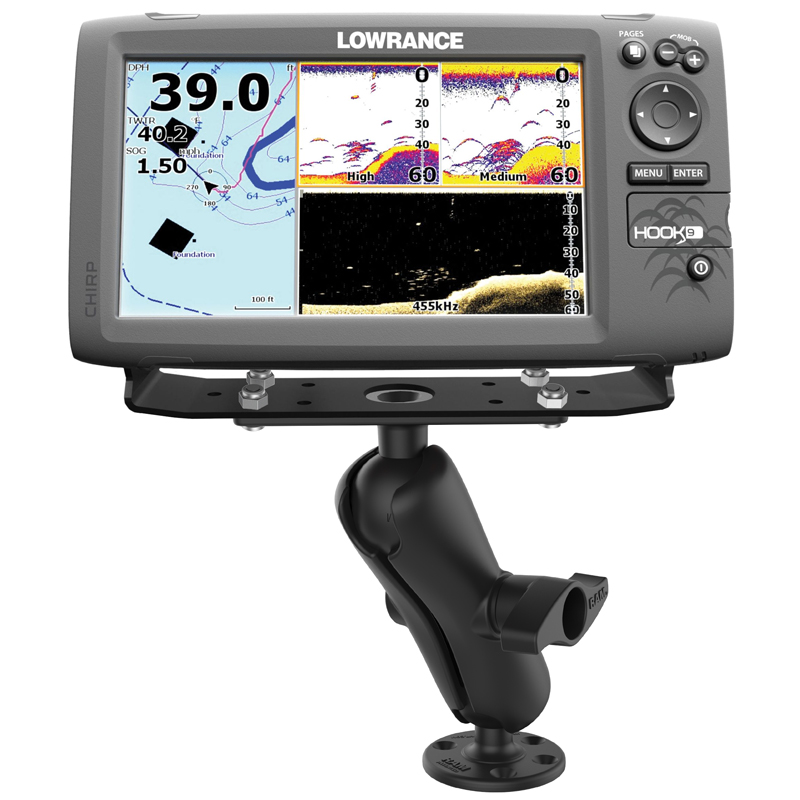

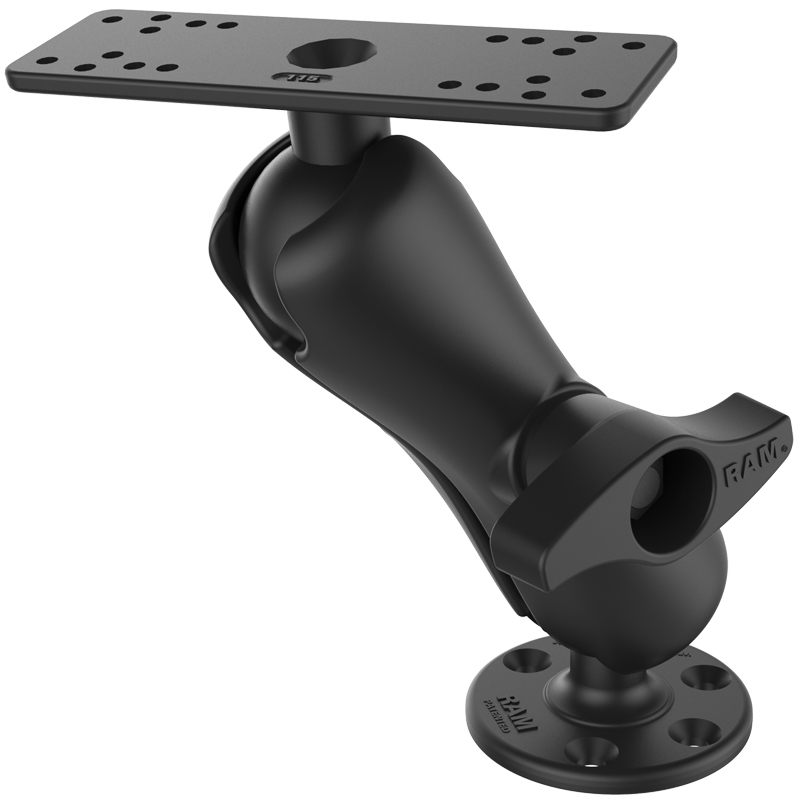

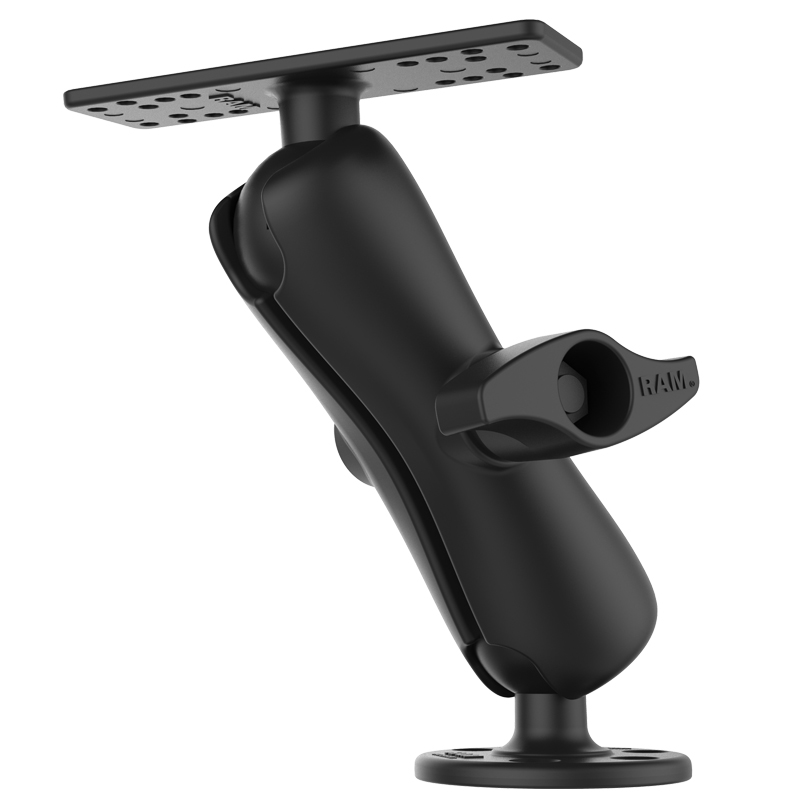

M-D-115 consists of a base with a 2.25” diameter D size ball, a standard arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.
PRODUCT DIMENSIONS
Overall Height: 10.7″
SOCKET-TO-SOCKET LENGTH: 6.88″
HOLE PATTERN: See Drawings
PLATE SIZE: Top Plate: 6.25″ x 2″
Bottom Plate: 3.68″ Diameter
BALL/SOCKET SIZE: D Size (2.25″)
WEIGHT CAPACITY: 6 lbs
MATERIALS: Marine-grade aluminum
PACKAGING TYPE: Retail Box
WEIGHT: 4.25 lbs.
ADDITIONAL INFORMATION: The 6.25″ x 2″ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
COMPATIBLE DEVICES
Garmin
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 942
GPSMAP 942xs
echoMAP Chirp 72-95 Series
ECHOMAP Plus 92-97 Series
Striker Plus 9sv
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
| Dimensiune bila: | D 2.25". |
| Tip dispozitiv: | Universal |
| Material | Aluminiu |
