RAM Torque 1 ½” – 2″ Diameter Rail Base

OVERVIEW

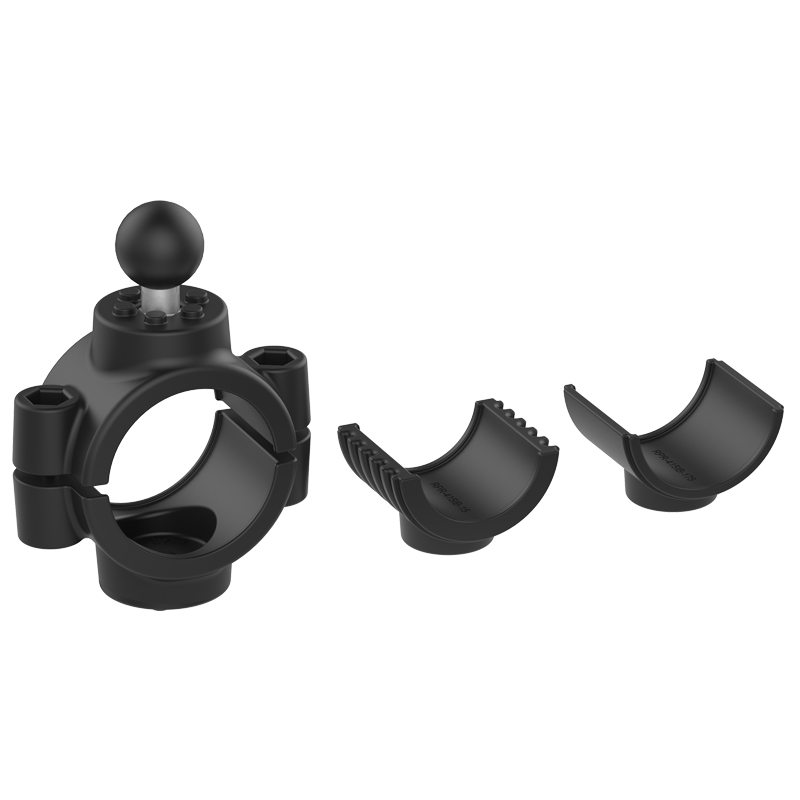

: The RAM Torque™ Rail Base accommodates rails and bars ranging from 1.5” to 2” in diameter – the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices. Two sizing inserts – one for attachment to 1.5” rails and the other for attachment to 1.75” rails – are included to create a tight hold while nylon-insert locknuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque™ Rail Base for mounting multiple devices.

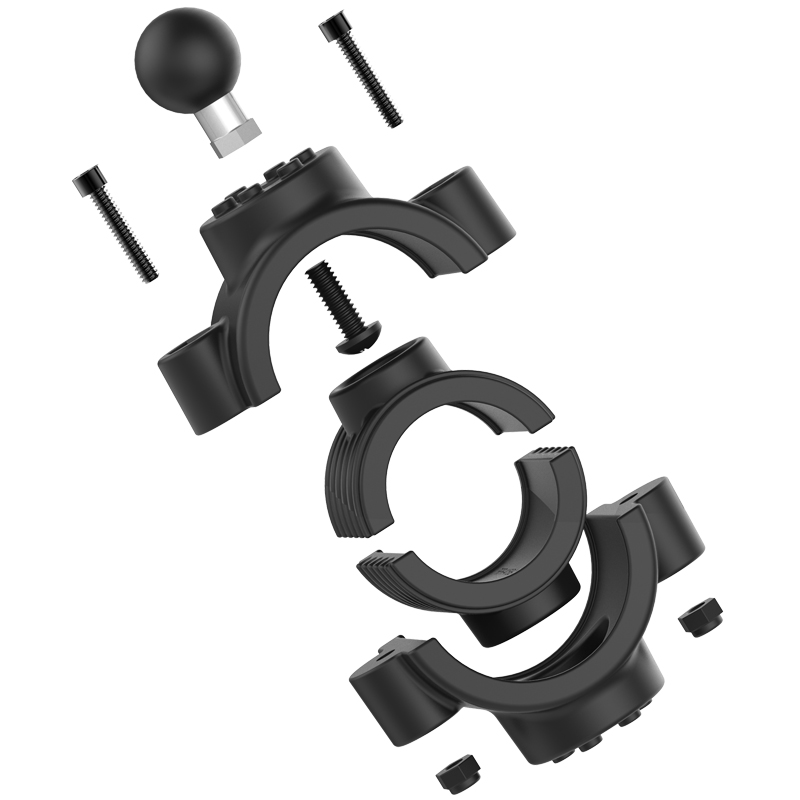

HARDWARE INCLUDED: Assembly Hardware

(2) #10-24 x 1″ Socket Head Cap Screws

(2) #10-24 Nylock Nuts

(1) 5/32″ Hex Key Wrench

(2) 1.5″ Split Reducing Bushings

(2) 1.75″ Split Reducing Bushings

(1) 172mm x 38.5mm Rubber Adhesive Strip

CLAMP RANGE: 1.5″ – 2″ diameter

BALL/SOCKET SIZE: B Size (1″)

WEIGHT CAPACITY: 2 lbs

MATERIALS: Marine-grade aluminum

WEIGHT: 0.85 lbs.
